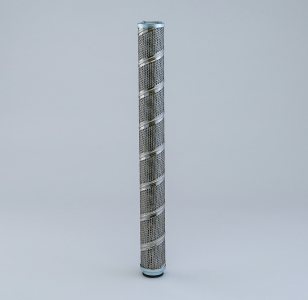

Donaldson Filtration P580610 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Seal Material Viton
Outer Diameter 2.12 inch (53.9 mm)
Inlet Diameter 0.98 inch (24.99 mm)
Overall Length 20.58 inch (522.76 mm)
Efficiency Beta 1000 12 micron
Collapse Burst 149 psi (10.3 bar)
Flow Direction Inside-Out
Style Cartridge
Media Type Synthetic
Price Type FH*
Packaged Dimensions
Packaged Length 0.31 FT
Packaged Width 0.31 FT
Packaged Height 1.86 FT
Packaged Weight 1.31 lb (0.595 kg)
Packaged Volume 0.18 ft3 (0.005 m3)
Pieces Per Pallet 242
Other Information
Country of Origin United States
NMFC Code 069100-05
HTS Code 8421290040
UPC Code 742330236581
