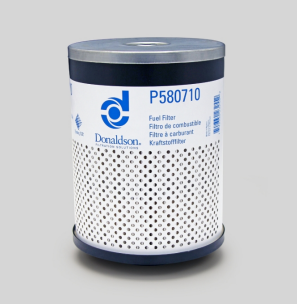

Donaldson Filtration P580710 FUEL FILTER, WATER SEPARATOR CARTRIDGE

Why Choose Donaldson Fuel Filters?
Donaldson fuel filters are designed to help prevent
premature injector and pump wear by delivering cleaner
fuel to your engines.
• Reliable performance – pressure relief valve allows fuel to
rise slowly.
• Compatible with existing electronic filter life indicators.
• Synteq™ XP media – enhanced engine and system
component protection, performing consistently over the life
of the filter.
• Ease of service – floating core prevents filter from having
to be aligned into the base.
Attributes
Overall Length 8.19 inch (208.1 mm)
Outer Diameter 5.98 inch (152 mm)
Length 7.47 inch (189.8 mm)
Efficiency 95% 10 micron
Efficiency Test Std ISO 19438
Emulsified H2O Efficiency 96 Percent
Flow Direction Standard
Type Coalescing Fuel Water Separator
Style Cartridge
Media Brand Synteq XP™
Media Type Coalescing
Price Type F
Packaged Dimensions
Packaged Length 0.53 FT
Packaged Width 0.53 FT
Packaged Height 0.73 FT
Packaged Weight 1.67 lb (0.758 kg)
Packaged Volume 0.21 ft3 (0.006 m3)
Pieces Per Pallet 245
Other Information
Country of Origin Mexico
NMFC Code 069100-05
HTS Code 8421230000
UPC Code 742330232552
Proposition 65 Notice for California:
WARNING
This product can expose you to chemicals
including Formaldehyde, which are known
to the State of California to cause cancer. For
more information go to
www.P65Warnings.ca.gov
