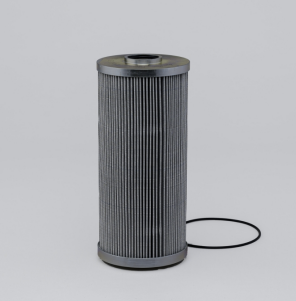

Donaldson Filtration P580903 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Seal Material Nitrile
Outer Diameter 4.72 inch (119.9 mm)
Inner Diameter 1.53 inch (38.9 mm)
Inner Diameter 2 2.36 inch (59.9 mm)
Overall Length 10.65 inch (270.6 mm)
Efficiency Beta 200 8 micron
Efficiency Beta 1000 12 micron
Bypass Valve No
Flow Direction Outside-In
Media Brand Synteq XP™
Media Type Synthetic
Price Type FH
Packaged Dimensions
Packaged Length 0.43 FT
Packaged Width 0.43 FT
Packaged Height 0.94 FT
Packaged Weight 3.53 lb (1.603 kg)
Packaged Volume 0.18 ft3 (0.005 m3)
Pieces Per Pallet 192
Other Information
Country of Origin United States
NMFC Code 069100-05
HTS Code 8421290040
UPC Code 742330238493
Proposition 65 Notice for California:
WARNING
This product can expose you to chemicals
including Glass Wool Fibers, which are
known to the State of California to cause
cancer. For more information go to
www.P65Warnings.ca.gov
