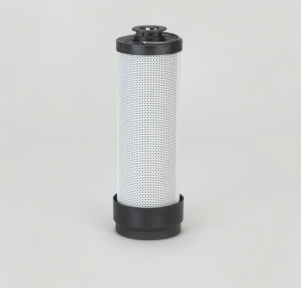

Donaldson Filtration P581465 HYDRAULIC FILTER, CARTRIDGE

 Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 3.46 inch (88 mm)
Inner Diameter 1.81 inch (46 mm)
Length 10.87 inch (276 mm)
Efficiency Beta 1000 12 micron
Bypass Valve Yes
Bypass Valve Setting LR 44 psi (3 bar)
Collapse Burst 290 psi (20 bar)
Media Type Synthetic
Price Type FH
Primary Application Hydac 0210R010 Series
Packaged Dimensions
Packaged Length 3.94 inch (10.008 cm)
Packaged Width 3.94 inch (10.008 cm)
Packaged Height 11.81 inch (29.997 cm)
Packaged Weight 2.25 lb (1.022 kg)
Packaged Volume 0.12 ft3 (0.003 m3)
Other Information
Country of Origin Italy
NMFC Code 069100-09
HTS Code 8421290040
UPC Code 742330237359
