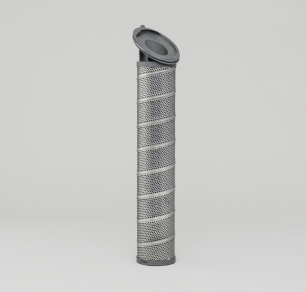

Donaldson Filtration P581972 HYDRAULIC FILTER, CARTRIDGE

  Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 3.90 inch (99 mm)
Length 23.56 inch (598.4 mm)
Efficiency Beta 1000 40 micron
Bypass Valve Setting LR 3 psi (0.2 bar)
Collapse Burst 71 psi (4.9 bar)
Flow Direction Reverse
Media Type Polyester Spunbond
Price Type FH
Packaged Dimensions
Packaged Length 0.41 FT
Packaged Width 0.41 FT
Packaged Height 2.00 FT
Packaged Weight 3.72 lb (1.689 kg)
Packaged Volume 0.33 ft3 (0.009 m3)
Other Information
Country of Origin United States
NMFC Code 069100-05
HTS Code 8421230000
UPC Code 742330239353
