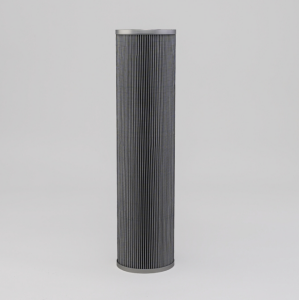

P583558 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 5.48 inch (139.2 mm)
Inner Diameter 2.77 inch (70.4 mm)
Length 23.75 inch (603.3 mm)
Gasket OD 2.72 inch (69.2 mm)
Efficiency Beta 1000 10 micron
Collapse Burst 145 psi (10 bar)
Media Brand DT High-Performance
Media Type Synthetic
Price Type FH
Packaged Dimensions
Packaged Length 0.54 FT
Packaged Width 0.52 FT
Packaged Height 2.21 FT
Packaged Weight 6.30 lb (2.860 kg)
Packaged Volume 0.62 ft3 (0.017 m3)
Other Information
Country of Origin United States
NMFC Code 069100-05
HTS Code 8421290040
UPC Code 742330244234
