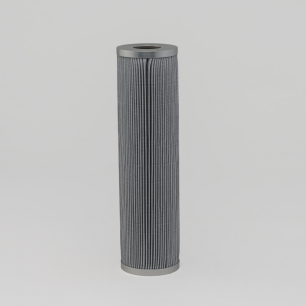

Donaldson Filtration P583601 HYDRAULIC FILTER, CARTRIDGE

 Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 3.45 inch (87.6 mm)
Inner Diameter 1.58 inch (40.1 mm)
Length 12.91 inch (328.0 mm)
Gasket ID 1.51 inch (38.4 mm)
Efficiency Beta 1000 5 micron
Collapse Burst 250 psi (17 bar)
Media Brand DT High-Performance
Media Type Synthetic
Price Type FH*
Primary Application HYDAC 0251RK005ON
Packaged Dimensions
Packaged Length 3.75 inch (9.525 cm)
Packaged Width 3.75 inch (9.525 cm)
Packaged Height 15.75 inch (40.005 cm)
Other Information
Country of Origin United States
NMFC Code 069100-05
HTS Code 8421290040
UPC Code 742330244401
