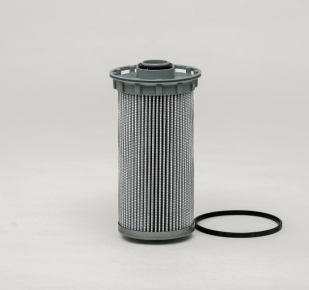

Donaldson Filtration P583607 HYDRAULIC FILTER, CARTRIDGE

 Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 3.41 inch (86.6 mm)
Inner Diameter 0.85 inch (21.5 mm)
Overall Length 6.39 inch (162.4 mm)
Efficiency Beta 1000 4 micron
Efficiency Test Std ISO 16889
Bypass Valve Yes
Bypass Valve Setting HR 25 psi (1.72 bar)
Collapse Burst 300 psi (21 bar)
Maximum Operating Temperature 250 °F (121 °C)
Style Cartridge
Media Brand DT High-Performance
Media Type Synthetic
Price Type FH
Primary Application 0100MX003BN4HCB17
Packaged Dimensions
Packaged Length 3.50 inch (8.890 cm)
Packaged Width 3.50 inch (8.890 cm)
Packaged Height 7.00 inch (17.780 cm)
Other Information
Country of Origin United States
NMFC Code 069100-09
HTS Code 8421290040
UPC Code 742330244715
Proposition 65 Notice for California:
WARNING
This product can expose you to chemicals
including Glass Wool Fibers, which are
known to the State of California to cause
cancer. For more information go to
www.P65Warnings.ca.gov
