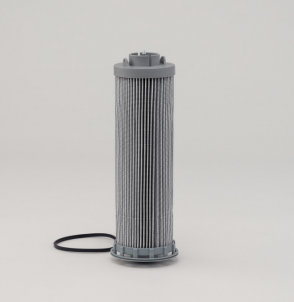

Donaldson Filtration P583614 HYDRAULIC FILTER, CARTRIDGE

 Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 3.41 inch (86.6 mm)
Inner Diameter 0.85 inch (21.5 mm)
Overall Length 10.05 inch (255.25 mm)
Efficiency Beta 1000 23 micron
Efficiency Test Std ISO 16889
Bypass Valve Yes
Bypass Valve Setting HR 51 psi (3.5 bar)
Collapse Burst 300 psi (21 bar)
Maximum Operating Temperature 250 °F (121 °C)
Style Cartridge
Media Brand DT High-Performance
Media Type Synthetic
Price Type FH
Primary Application 0200MX020BN4HCB35
Packaged Dimensions
Packaged Length 4.20 inch (10.668 cm)
Packaged Width 4.08 inch (10.363 cm)
Packaged Height 10.08 inch (25.603 cm)
Packaged Weight 1.03 lb (0.465 kg)
Packaged Volume 0.10 ft3 (0.003 m3)
Other Information
Country of Origin United States
NMFC Code 069100-07
HTS Code 8421290040
UPC Code 742330244791
