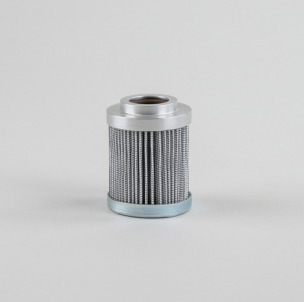

Donaldson Filtration P584252 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Seal Material Fluorocarbon
Outer Diameter 2.18 inch (55.3 mm)
Inner Diameter 1.02 inch (26 mm)
Length 2.83 inch (71.9 mm)
Gasket ID 0.96 inch (24.3 mm)
Efficiency Beta 1000 25 micron
Collapse Burst 450 psi (31 bar)
Media Brand DT High-Performance
Media Type Synthetic
Price Type FH*
Packaged Dimensions
Packaged Length 0.30 FT
Packaged Width 0.30 FT
Packaged Height 0.52 FT
Packaged Weight 0.39 lb (0.177 kg)
Packaged Volume 0.05 ft3 (0.001 m3)
Other Information
Country of Origin United States
NMFC Code 069100-05
HTS Code 8421290040
UPC Code 742330257685
