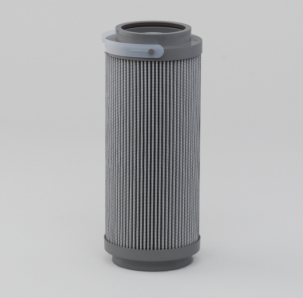

Donaldson Filtration P584317 HYDRAULIC FILTER, CARTRIDGE

 Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 2 3.84 inch (97.5 mm)
Seal Material Fluorocarbon
Outer Diameter 3.83 inch (97.2 mm)
Inner Diameter 2.41 inch (61.3 mm)
Inner Diameter 2 2.53 inch (64.3 mm)
Length 18.60 inch (472.4 mm)
Gasket ID 2.47 inch (62.7 mm)
Efficiency Beta 1000 25 micron
Collapse Burst 149 psi (10.3 bar)
Media Brand DT High-Performance
Media Type Synthetic
Price Type FH*
Packaged Dimensions
Packaged Length 4.25 inch (10.795 cm)
Packaged Width 4.25 inch (10.795 cm)
Packaged Height 18.75 inch (47.625 cm)
Other Information
Country of Origin United States
NMFC Code 069100-13
HTS Code 8421290040
UPC Code 742330258200
Proposition 65 Notice for California:
WARNING
This product can expose you to chemicals
including Glass Wool Fibers, which are
known to the State of California to cause
cancer. For more information go to
www.P65Warnings.ca.gov.
