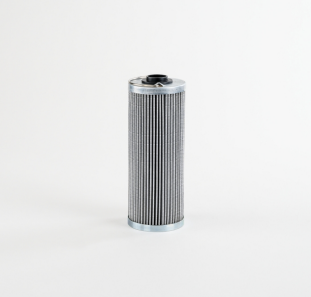

Donaldson Filtration P584344 HYDRAULIC FILTER, CARTRIDGE

 Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Seal Material Fluorocarbon
Outer Diameter 3.11 inch (79.1 mm)
Inner Diameter 1.64 inch (41.7 mm)
Length 8.18 inch (207.8 mm)
Gasket ID 1.58 inch (40.1 mm)
Efficiency Beta 1000 12 micron
Bypass Valve Yes
Bypass Valve Setting HR 25 psi (1.72 bar)
Collapse Burst 450 psi (31 bar)
Flow Direction Outside-In
Media Brand DT High Performance
Media Type Synthetic
Price Type FH*
Primary Application Schroeder 8Z15
Packaged Dimensions
Packaged Length 3.25 inch (8.255 cm)
Packaged Width 3.25 inch (8.255 cm)
Packaged Height 8.25 inch (20.955 cm)
Other Information
Country of Origin United States
NMFC Code 069100-13
HTS Code 8421290040
UPC Code 742330258255
