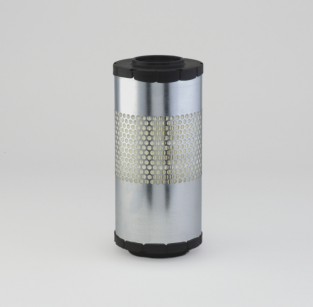

Donaldson Filtration P629560 AIR FILTER, PRIMARY RADIALSEAL

Why Choose Donaldson RadialSeal™ Filters?
Reliable, leak- resistant Radial Seal™ keeps filters in place –
even under heavy vibration.
• High-efficiency cellulose media performs across a wide
range of heavy-duty engine applications.
• Corrosion resistant, coated steel liners support media
during operation and help maximize airflow.
• Pleatloc™ feature ensures uniform pleat spacing and
prevents media from bunching to promote longer service
life.
Attributes
Overall Length 12.66 inch (321.5 mm)
Outer Diameter 5.71 inch (145 mm)
Inner Diameter 2.96 inch (75.3 mm)
Length 11.69 inch (297 mm)
Efficiency 99.9
Efficiency Test Std ISO 5011
Primary Application PERKINS 135326206
Type Primary
Style Radialseal
Brand RadialSeal™
Media Type Cellulose
Flow Direction Standard
Price Type F
Packaged Dimensions
Packaged Length 6.20 inch (15.748 cm)
Packaged Width 6.20 inch (15.748 cm)
Packaged Height 13.80 inch (35.052 cm)
Packaged Weight 2.25 lb (1.022 kg)
Packaged Volume 0.31 ft3 (0.009 m3)
Pieces Per Pallet 126
Other Information
Country of Origin Czech Republic
NMFC Code 069100-03
HTS Code 8421310000
UPC Code 742330990797
