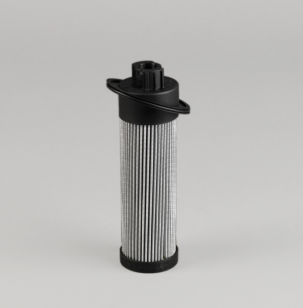

Donaldson Filtration P762421 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 3.56 inch (90.3 mm)
Inner Diameter 1.18 inch (30 mm)
Length 9.07 inch (230.3 mm)
Efficiency Beta 200 11 micron
Efficiency Beta 1000 13 micron
Flow Direction Outside-In
Style Cartridge
Media Type Synthetic
Price Type FH
Packaged Dimensions
Packaged Length 4.08 inch (10.363 cm)
Packaged Width 4.08 inch (10.363 cm)
Packaged Height 9.84 inch (24.994 cm)
Packaged Weight 0.83 lb (0.376 kg)
Packaged Volume 0.10 ft3 (0.003 m3)
Other Information
Country of Origin Italy
NMFC Code 069100-09
HTS Code 8421290040
UPC Code 742330122716
