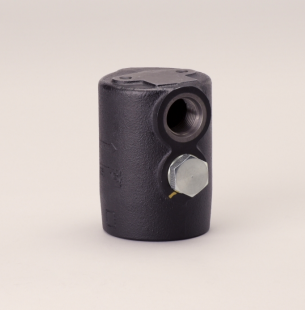

Donaldson Filtration P762766 HEAD ASSEMBLY, HYDRAULIC

Why Choose Donaldson Hydraulic Heads
• A variety of low, medium and high-pressure filter heads
available for a wide range of applications.
• Choose between optional features for a customized heads
that best fits the needs of your specific application.
• A variety of inlet & outlet port configurations are available
to meet your exact requirements.
Attributes
Reverse Flow Check Valve No
Length 3.70 inch (94 mm)
Height 4.49 inch (114 mm)
Inlet Size SAE-12
Outlet Size SAE-12
Filter-to-Head Thread M68 x 1.5
Bypass Valve Yes
Bypass Valve Setting LR 87 psi (6 bar)
Series FPK02
Price Type H
Packaged Dimensions
Packaged Length 4.20 inch (10.668 cm)
Packaged Width 4.20 inch (10.668 cm)
Packaged Height 4.90 inch (12.446 cm)
Packaged Weight 4.85 lb (2.200 kg)
Packaged Volume 0.05 ft3 (0.001 m3)
Pieces Per Pallet 84
Other Information
Country of Origin Italy
NMFC Code 133320
HTS Code 8421990180
