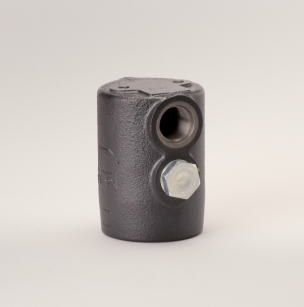

Donaldson Filtration P762767 HEAD ASSEMBLY, HYDRAULIC

Why Choose Donaldson Hydraulic Heads
• A variety of low, medium and high-pressure filter heads
available for a wide range of applications.
• Choose between optional features for a customized heads
that best fits the needs of your specific application.
• A variety of inlet & outlet port configurations are available
to meet your exact requirements.
Attributes
Reverse Flow Check Valve Yes
Length 3.7 inch (94 mm)
Height 4.49 inch (114 mm)
Inlet Size SAE-12
Outlet Size SAE-12
Filter-to-Head Thread M68 x 1.5
Bypass Valve Yes
Bypass Valve Setting LR 87 psi (6 bar)
Series FPK02
Price Type H
Packaged Dimensions
Packaged Length 4.30 inch (10.922 cm)
Packaged Width 4.50 inch (11.430 cm)
Packaged Height 6.30 inch (16.002 cm)
Packaged Weight 4.96 lb (2.249 kg)
Packaged Volume 0.07 ft3 (0.002 m3)
Pieces Per Pallet 672
Other Information
Country of Origin Italy
NMFC Code 133320
HTS Code 8421990180
UPC Code 742330113165
