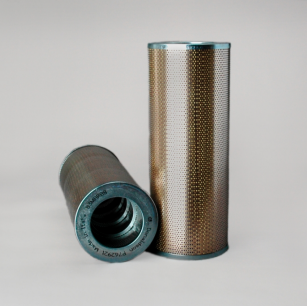

Donaldson Filtration P762921 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Notes
For Hitachi Cross References the Gasket and
O-Ring to be bought separately.
Outer Diameter 6.89 inch (175 mm)
Inner Diameter 4.33 inch (110 mm)
Overall Length 17.72 inch (450 mm)
Efficiency Beta 2 10 micron
Efficiency Beta 200 24 micron
Collapse Burst 145 psi (10 bar)
Flow Direction Outside-In
Style Cartridge
Media Type Cellulose
Price Type F
Primary Application HITACHI 4333469
Packaged Dimensions
Packaged Length 9.10 inch (23.114 cm)
Packaged Width 9.10 inch (23.114 cm)
Packaged Height 23.10 inch (58.674 cm)
Packaged Weight 6.77 lb (3.069 kg)
Packaged Volume 1.11 ft3 (0.031 m3)
Pieces Per Pallet 21
Other Information
Country of Origin Italy
NMFC Code 069100-04
HTS Code 8421290040
UPC Code 742330125816
