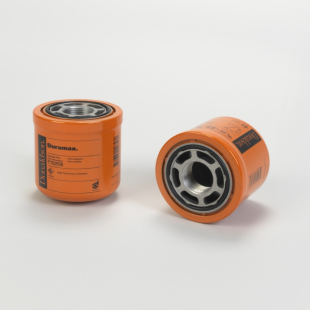

Donaldson Filtration P763558 HYDRAULIC FILTER, SPIN-ON

Why Choose Donaldson Spin-On Filters
• High-performance Hydraulic Spin-On filters utilize
Donaldson media technology which undergoes stringent
design and testing which sets the standard in filtration
performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM
specifications
Attributes
Outer Diameter 3.72 inch (94.6 mm)
Thread Size 1 3/8-12 UN
Length 3.94 inch (100 mm)
Gasket OD 2.76 inch (70.15 mm)
Gasket ID 2.48 inch (63.1 mm)
Efficiency Beta 200 18 micron
Efficiency Beta 1000 23 micron
Flow Direction Outside-In
Style Spin-On
Media Type Synthetic
Price Type FH
Packaged Dimensions
Packaged Length 3.94 inch (10.008 cm)
Packaged Width 3.94 inch (10.008 cm)
Packaged Height 6.69 inch (16.993 cm)
Packaged Weight 1.67 lb (0.756 kg)
Packaged Volume 0.06 ft3 (0.002 m3)
Pieces Per Pallet 539
Other Information
Country of Origin Italy
NMFC Code 069095-08
HTS Code 8421290040
UPC Code 742330147580
