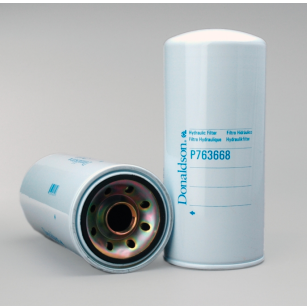

Donaldson Filtration P763668 HYDRAULIC FILTER, SPIN-ON

Why Choose Donaldson Spin-On Filters
• High-performance Hydraulic Spin-On filters utilize
Donaldson media technology which undergoes stringent
design and testing which sets the standard in filtration
performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM
specifications
Attributes
Outer Diameter 5.33 inch (135.3 mm)
Thread Size 1 1/2-16 UN
Length 12.13 inch (308 mm)
Gasket OD 4.35 inch (110.5 mm)
Gasket ID 3.95 inch (100.3 mm)
Efficiency Beta 1000 9 micron
Flow Direction Outside-In
Style Spin-On
Media Type Synthetic
Price Type FH
Primary Application MAHLE HC35
Packaged Dimensions
Packaged Length 6.00 inch (15.240 cm)
Packaged Width 6.00 inch (15.240 cm)
Packaged Height 13.00 inch (33.020 cm)
Packaged Weight 4.79 lb (2.175 kg)
Packaged Volume 0.27 ft3 (0.008 m3)
Pieces Per Pallet 147
Other Information
Country of Origin United States
NMFC Code 069100-08
HTS Code 8421290040
UPC Code 742330160503
Proposition 65 Notice for California:
WARNING
This product can expose you to chemicals
including Glass Wool Fibers, which are
known to the State of California to cause
cancer. For more information go to
www.P65Warnings.ca.gov.
