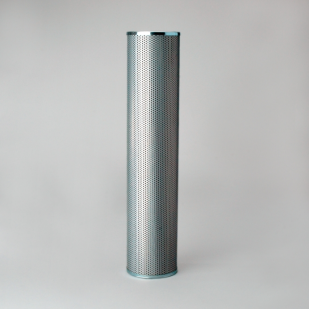

Donaldson Filtration P763873 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 4.96 inch (126 mm)
Inner Diameter 3.35 inch (85 mm)
Inner Diameter 2 1.57 inch (40 mm)
Length 22.83 inch (580 mm)
Efficiency Beta 1000 11 micron
Collapse Burst 145 psi (10 bar)
Flow Direction Inside-Out
Style Cartridge
Media Type Synthetic
Price Type FH
Primary Application TAMROCK 86727289
Packaged Dimensions
Packaged Length 6.50 inch (16.510 cm)
Packaged Width 6.30 inch (16.002 cm)
Packaged Height 24.00 inch (60.960 cm)
Packaged Weight 5.55 lb (2.515 kg)
Packaged Volume 0.57 ft3 (0.016 m3)
Pieces Per Pallet 39
Other Information
Country of Origin Italy
NMFC Code 069100-03
HTS Code 8421290040
UPC Code 742330163597
