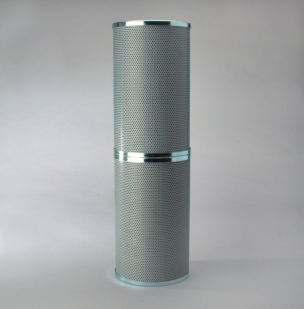

Donaldson Filtration P763874 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 7.95 inch (202 mm)
Inner Diameter 0.56 inch (14.2 mm)
Length 25.98 inch (660 mm)
Efficiency Beta 1000 11 micron
Collapse Burst 145 psi (10 bar)
Flow Direction Inside-Out
Style Cartridge
Media Type Synthetic
Price Type FH
Primary Application TAMROCK 04004079
Packaged Dimensions
Packaged Length 8.40 inch (21.336 cm)
Packaged Width 8.40 inch (21.336 cm)
Packaged Height 26.64 inch (67.666 cm)
Packaged Weight 11.75 lb (5.330 kg)
Packaged Volume 1.09 ft3 (0.031 m3)
Pieces Per Pallet 40
Other Information
Country of Origin Italy
NMFC Code 069100-02
HTS Code 8421290040
UPC Code 742330163603
