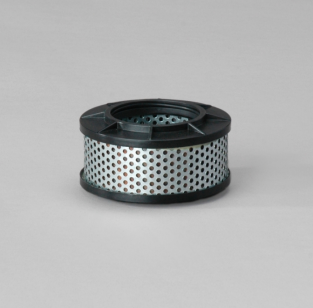

Donaldson Filtration P764183 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Mesh Rating 125 micron
Outer Diameter 3.90 inch (99 mm)
Inner Diameter 2.61 inch (66.2 mm)
Length 1.98 inch (50.2 mm)
Efficiency Beta 2 1 micron
Flow Direction Outside-In
Style Cartridge
Series SRK Combo
Media Type Wire Mesh
Price Type FH
Packaged Dimensions
Packaged Length 4.10 inch (10.414 cm)
Packaged Width 4.10 inch (10.414 cm)
Packaged Height 4.70 inch (11.938 cm)
Packaged Weight 0.24 lb (0.109 kg)
Packaged Volume 0.05 ft3 (0.001 m3)
Pieces Per Pallet 990
Other Information
Country of Origin Italy
NMFC Code 069100-10
HTS Code 8421290040
UPC Code 742330170779
