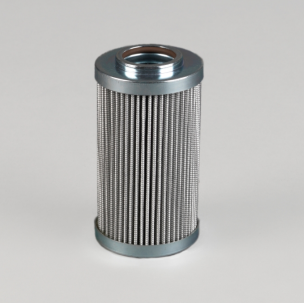

Donaldson Filtration P765281 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 2.72 inch (69 mm)
Inner Diameter 1.26 inch (32 mm)
Length 5.00 inch (127 mm)
Efficiency Beta 200 7 micron
Efficiency Beta 1000 9 micron
Collapse Burst 1160 psi (80 bar)
Flow Direction Outside-In
Style Cartridge
Media Type Synthetic
Price Type FH
Primary Application TIMBERJACK F058437
Packaged Dimensions
Packaged Length 3.54 inch (8.992 cm)
Packaged Width 3.54 inch (8.992 cm)
Packaged Height 5.91 inch (15.011 cm)
Packaged Weight 0.77 lb (0.350 kg)
Packaged Volume 0.04 ft3 (0.001 m3)
Pieces Per Pallet 208
Other Information
Country of Origin Italy
NMFC Code 133320
HTS Code 8421290040
UPC Code 742330190050
