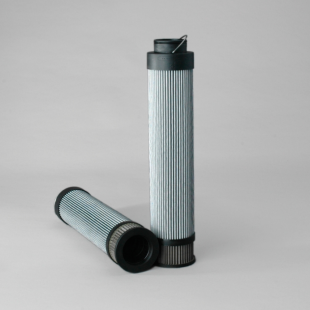

Donaldson Filtration P765457 HYDRAULIC FILTER, CARTRIDGE

HYDRAULIC FILTER, CARTRIDGE
Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 3.46 inch (88 mm)
Inner Diameter 1.65 inch (42 mm)
Length 15.04 inch (382 mm)
Overall Length 16.96 inch (430.7 mm)
Efficiency Beta 1000 13 micron
Collapse Burst 145 psi (10 bar)
Flow Direction Outside-In
Style Cartridge
Series SRK Combo
Media Type Synthetic
Price Type FH
Packaged Dimensions
Packaged Length 4.33 inch (10.998 cm)
Packaged Width 4.72 inch (11.989 cm)
Packaged Height 18.90 inch (48.006 cm)
Packaged Weight 2.25 lb (1.020 kg)
Packaged Volume 0.22 ft3 (0.006 m3)
Pieces Per Pallet 10
Other Information
Country of Origin Italy
NMFC Code 069100-04
HTS Code 8421290040
UPC Code 742330192559
