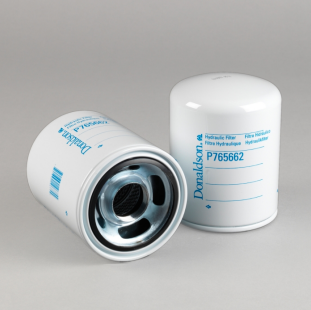

Donaldson Filtration P765662 HYDRAULIC FILTER, SPIN-ON

Why Choose Donaldson Spin-On Filters
• High-performance Hydraulic Spin-On filters utilize
Donaldson media technology which undergoes stringent
design and testing which sets the standard in filtration
performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM
specifications
Attributes
Outer Diameter 5.32 inch (135.2 mm)
Thread Size 1 3/4-16 UN
Length 6.90 inch (175.2 mm)
Gasket OD 4.35 inch (110.5 mm)
Gasket ID 3.94 inch (100 mm)
Efficiency Beta 200 42 micron
Efficiency Beta 1000 50 micron
Bypass Valve Yes
Bypass Valve Setting LR 12 psi (0.8 bar)
Collapse Burst 73 psi (5 bar)
Flow Direction Outside-In
Style Spin-On
Media Type Synthetic
Price Type FH
Primary Application NEW HOLLAND 84123428
Packaged Dimensions
Packaged Length 5.80 inch (14.732 cm)
Packaged Width 6.00 inch (15.240 cm)
Packaged Height 8.10 inch (20.574 cm)
Packaged Weight 3.20 lb (1.449 kg)
Packaged Volume 0.16 ft3 (0.004 m3)
Pieces Per Pallet 160
Other Information
Country of Origin Italy
NMFC Code 069100-12
HTS Code 8421290040
UPC Code 742330196755
