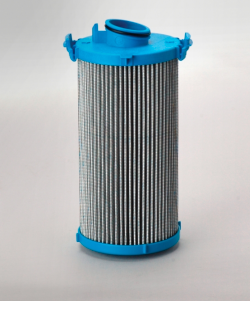

Donaldson Filtration P766847 HYDRAULIC FILTER, CARTRIDGE

HYDRAULIC FILTER, CARTRIDGE
Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 3.78 inch (96 mm)
Inner Diameter 1.61 inch (41 mm)
Length 7.38 inch (187.5 mm)
Outlet Diameter 1.61 inch (41 mm)
Efficiency Beta 1000 6 micron
Collapse Burst 145 psi (10 bar)
Flow Direction Outside-In
Style Cartridge
Series FLK110
Media Type Synthetic
Price Type FH
Packaged Dimensions
Packaged Length 4.72 inch (11.989 cm)
Packaged Width 4.72 inch (11.989 cm)
Packaged Height 9.06 inch (23.012 cm)
Packaged Weight 1.37 lb (0.620 kg)
Packaged Volume 0.12 ft3 (0.003 m3)
Pieces Per Pallet 210
Other Information
Country of Origin Italy
NMFC Code 069100-11
HTS Code 8421290040
UPC Code 742330974674
