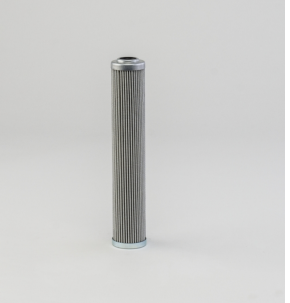

Donaldson Filtration P766956 HYDRAULIC FILTER, CARTRIDGE

 Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Seal Material Nitrile
Outer Diameter 1.75 inch (44.5 mm)
Inner Diameter 0.87 inch (22.1 mm)
Length 9.76 inch (248 mm)
Efficiency Beta 200 21 micron
Efficiency Beta 1000 27 micron
Collapse Burst 305 psi (21 bar)
Flow Direction Outside-In
Style Cartridge
Media Type Synthetic
Price Type FH
Packaged Dimensions
Packaged Length 2.20 inch (5.588 cm)
Packaged Width 2.20 inch (5.588 cm)
Packaged Height 10.30 inch (26.162 cm)
Packaged Weight 0.56 lb (0.254 kg)
Packaged Volume 0.03 ft3 (0.001 m3)
Pieces Per Pallet 1596
Other Information
Country of Origin United States
NMFC Code 069100-01
HTS Code 8421290040
UPC Code 742330974193
