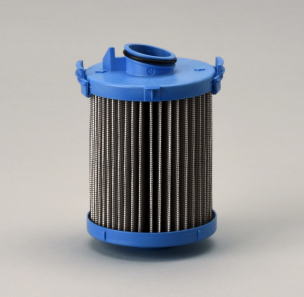

Donaldson Filtration P766987 HYDRAULIC FILTER, CARTRIDGE

 Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 3.64 inch (92.4 mm)
Inner Diameter 1.32 inch (33.5 mm)
Length 4.21 inch (107 mm)
Overall Length 4.89 inch (124.1 mm)
Efficiency Beta 1000 11 micron
Efficiency Test Std ISO 16889
Collapse Burst 145 psi (10 bar)
Flow Direction Outside-In
Maximum Operating Temperature 250 °F (121 °C)
Type Full-Flow
Style Cartridge
Series FLK90
Media Brand Synteq XP™
Media Type Synthetic
Price Type FH
Packaged Dimensions
Packaged Length 4.00 inch (10.160 cm)
Packaged Width 4.10 inch (10.414 cm)
Packaged Height 6.40 inch (16.256 cm)
Packaged Weight 0.73 lb (0.329 kg)
Packaged Volume 0.06 ft3 (0.002 m3)
Pieces Per Pallet 770
Other Information
Country of Origin Italy
NMFC Code 069100-05
HTS Code 8421290040
UPC Code 742330982099
