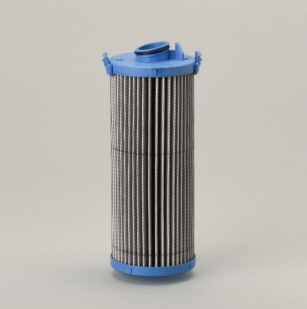

Donaldson Filtration P767131 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 3.64 inch (92.4 mm)
Inner Diameter 1.32 inch (33.5 mm)
Length 8.23 inch (209 mm)
Overall Length 8.90 inch (226.1 mm)
Efficiency Beta 1000 13 micron
Efficiency Test Std ISO 16889
Collapse Burst 145 psi (10 bar)
Flow Direction Outside-In
Maximum Operating Temperature 250 °F (121 °C)
Type Full-Flow
Style Cartridge
Series FLK90
Media Brand Synteq XP™
Media Type Synthetic
Price Type FH
Packaged Dimensions
Packaged Length 3.94 inch (10.008 cm)
Packaged Width 3.94 inch (10.008 cm)
Packaged Height 9.84 inch (24.994 cm)
Packaged Weight 1.12 lb (0.510 kg)
Packaged Volume 0.09 ft3 (0.003 m3)
Pieces Per Pallet 396
Other Information
Country of Origin Italy
NMFC Code 069100-05
HTS Code 8421290040
UPC Code 742330981023
