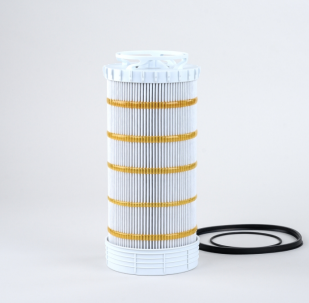

Donaldson Filtration P767446 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 5.78 inch (146.7 mm)
Inner Diameter 3.19 inch (81 mm)
Overall Length 12.70 inch (322.5 mm)
Efficiency Beta 200 21 micron
Efficiency Beta 1000 32 micron
Efficiency Test Std ISO 16889
Bypass Valve Yes
Bypass Valve Setting LR 10 psi (0.7 bar)
Collapse Burst 73 psi (5 bar)
Flow Direction Outside-In
Style Cartridge
Media Type Synthetic
Price Type FH
Primary Application CNH 47617642
Packaged Dimensions
Packaged Length 5.91 inch (15.011 cm)
Packaged Width 5.91 inch (15.011 cm)
Packaged Height 14.17 inch (35.992 cm)
Packaged Weight 2.75 lb (1.247 kg)
Packaged Volume 0.29 ft3 (0.008 m3)
Pieces Per Pallet 120
Other Information
Country of Origin Italy
NMFC Code 069100-08
HTS Code 8421290040
UPC Code 742330989425
