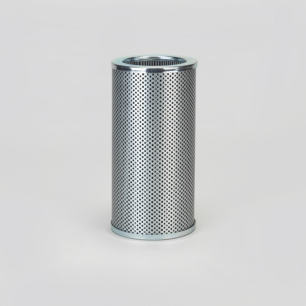

Donaldson Filtration P767671 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 4.96 inch (126 mm)
Gasket OD 3.62 inch (92 mm)
Overall Length 10.00 inch (254 mm)
Efficiency Beta 200 9 micron
Efficiency Beta 1000 11 micron
Flow Direction Inside-Out
Media Type Synthetic
Price Type FH
Primary Application Sandvik underground mining equipment
Packaged Dimensions
Packaged Length 5.91 inch (15.011 cm)
Packaged Width 5.91 inch (15.011 cm)
Packaged Height 11.02 inch (27.991 cm)
Packaged Weight 2.40 lb (1.090 kg)
Packaged Volume 0.22 ft3 (0.006 m3)
Pieces Per Pallet 120
Other Information
Country of Origin Italy
NMFC Code 069100-13
HTS Code 8421290040
UPC Code 742330229811
