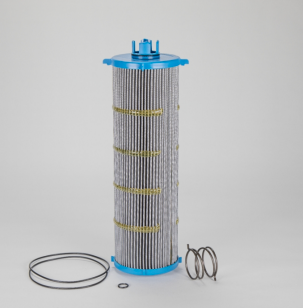

Donaldson Filtration P768041 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 4.70 inch (119.5 mm)
Length 12.01 inch (305 mm)
Overall Length 14.13 inch (359 mm)
Efficiency Beta 200 12 micron
Efficiency Beta 1000 14 micron
Flow Direction Outside-In
Price Type FH
Packaged Dimensions
Packaged Length 4.33 inch (10.998 cm)
Packaged Width 4.33 inch (10.998 cm)
Packaged Height 14.96 inch (37.998 cm)
Packaged Weight 2.11 lb (0.958 kg)
Packaged Volume 0.16 ft3 (0.004 m3)
Other Information
Country of Origin Italy
NMFC Code 069095-08
HTS Code 8421290040
UPC Code 742330239940
