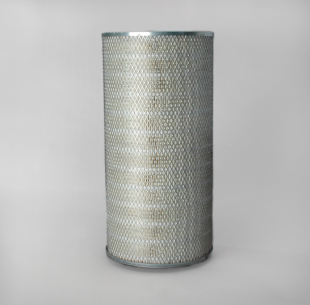

Donaldson Filtration P771509 AIR FILTER, PRIMARY ROUND

Why Choose Donaldson Air Filters?
Strong, reliable gasket is compressed against the air cleaner
housing to create a tight seal.
• High-efficiency cellulose media performs across a wide
range of heavy-duty engine applications.
• Corrosion resistant, coated steel liners support media
during operation and help maximize airflow.
• Pleatloc™ feature ensures uniform pleat spacing and
prevents media from bunching to promote longer service
life.
Attributes
Overall Length 19.65 inch (499 mm)
Outer Diameter 9.53 inch (242 mm)
Inner Diameter 5.20 inch (132 mm)
Length 19.13 inch (486 mm)
Efficiency 99.9
Efficiency Test Std ISO 5011
Type Primary
Style Round
Media Type Cellulose
Price Type F
Packaged Dimensions
Packaged Length 10.90 inch (27.686 cm)
Packaged Width 10.80 inch (27.432 cm)
Packaged Height 20.10 inch (51.054 cm)
Packaged Weight 6.52 lb (2.957 kg)
Packaged Volume 1.37 ft3 (0.038 m3)
Pieces Per Pallet 24
Other Information
Country of Origin United Kingdom
NMFC Code 069100-02
HTS Code 8421310000
UPC Code 742330047408
