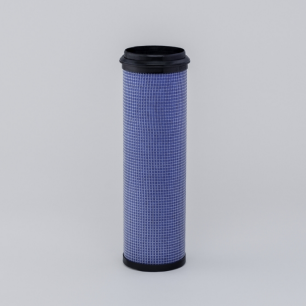

Donaldson Filtration P776696 AIR FILTER, SAFETY

Why Choose Donaldson Safety Filters?
Safety filters have two functions: to act as a backup to the
primary filter and to protect the engine during primary filter
servicing.
• Serve as a backup filter in case of primary filter damage or
improper installation.
• Prevent contaminants from entering the clean side of the
air intake system during primary filter servicing.
• Designed to plug rapidly if contamination finds its way past
the primary filter, alerting operators about an issue.
• Recommend that safety filters are replaced with every third
primary filter change unless there has been a failure of the
primary filter.
Attributes
Outer Diameter 4.76 inch (121 mm)
Inner Diameter 3.94 inch (100.1 mm)
Length 14.93 inch (379.2 mm)
Bolt Hole Diameter 0.69 inch (17.5 mm)
Efficiency Test Std ISO 5011
Primary Application MANN & HUMMEL CF1200
Type Safety
Style Round
Price Type F
Packaged Dimensions
Packaged Length 5.28 inch (13.411 cm)
Packaged Width 5.28 inch (13.411 cm)
Packaged Height 15.96 inch (40.538 cm)
Packaged Weight 1.22 lb (0.553 kg)
Packaged Volume 0.26 ft3 (0.007 m3)
Pieces Per Pallet 189
Other Information
Country of Origin Czech Republic
NMFC Code 069100-07
HTS Code 8421310000
UPC Code 742330050828
